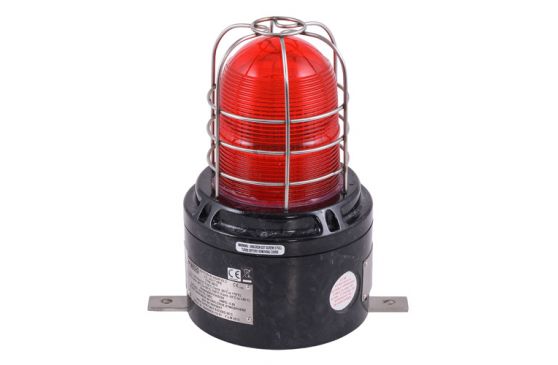

XB15 Range Xenon Beacons
Price
SGD 0.00
OVERVIEW
These certified beacons have been designed for use in potentially explosive atmospheres and harsh environmental conditions. The enclosures are suitable for use offshore or onshore, where lightweight combined with corrosion
resistance is required.
Share
Features
• Zones 1, 2, 21 & 22
• Exd IIC, T4/T5/T6
• ATEX certifi ed, Ex II 2GD
• IECEx certifi ed Gb, Db
• UL certifi ed for USA and Canada:
– Hazardous locations:
Class I, Div. 2, Groups A, B, f C & D
Class II, Div 2 Groups F & G
Class I, Zone 1, AExd IIC T4/T5/T6
– Ordinary locations: visual-signal device
– Marine listed
• ULC certified to Canadian Safety Standards
• TR CU certified
• CCCF certified
• CQST certified
• INMETRO certified
• CCOE certified
• IP66 & 67
• EN54-23 certifi ed
• SIL 1 certifi ed
• Certifi ed temperature from –55ºC to +70ºC
• 5, 10 & 15J versions available
• Pipe mount or direct mount enclosure
• Corrosion-free GRP
• Four wire and supervisory diode
• Optional stainless steel backstrap
• Various lens colours
• Optional relay or telephone initiate
• Optional cast or wire lens guard
• Up to 3 x M20 or 3 x M25 entries
• LED version available (see data sheet for LD15)
• Improved inrush current characteristics
• Consistent extreme temperature start-up
